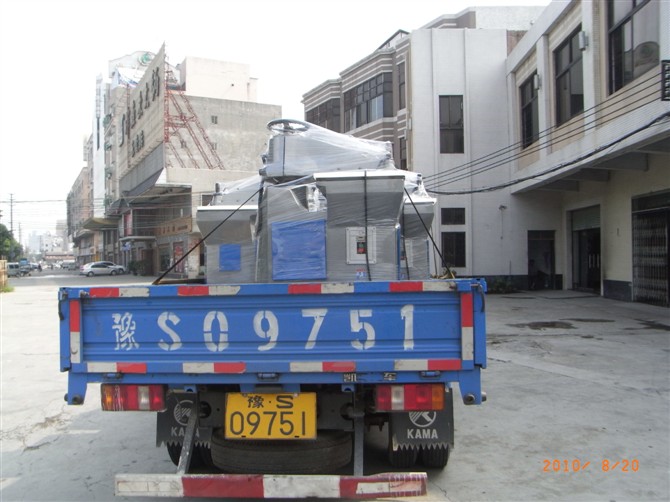

下圖為裝貨配送圖

用途特點：

適用于成型刀模沖裁各種鞋面、鞋底、皮革、橡膠、化纖、硬紙及棉織品、
1、設有自動供油潤滑系統、減少磨損，延長使用壽命‘
2、采用電子延時電路控制沖程下限位置，精度高，可提高制鞋品質，利用手
輪調節擺臂距工作臺高度，簡單、可靠、方便
    It is used to cut uppers, soles, rubber, plastic, chimicalfibbre,hard psper,ect
a.lt is equiped vith a lubricating sysfem,to reduce wear and prolong Its service  life
A.elecironic time-lapse system can better quell of shoes and
makes operation simply.convenient and tavle
B.the position of the swing arm is adjusted by the upper handwheel on the machine
blanking travel is controlled by the timer,thus it is easy to
obtaom the best cutting position.which can increasework efficiency and prolong
the service life of the knife mould and 6ecking board

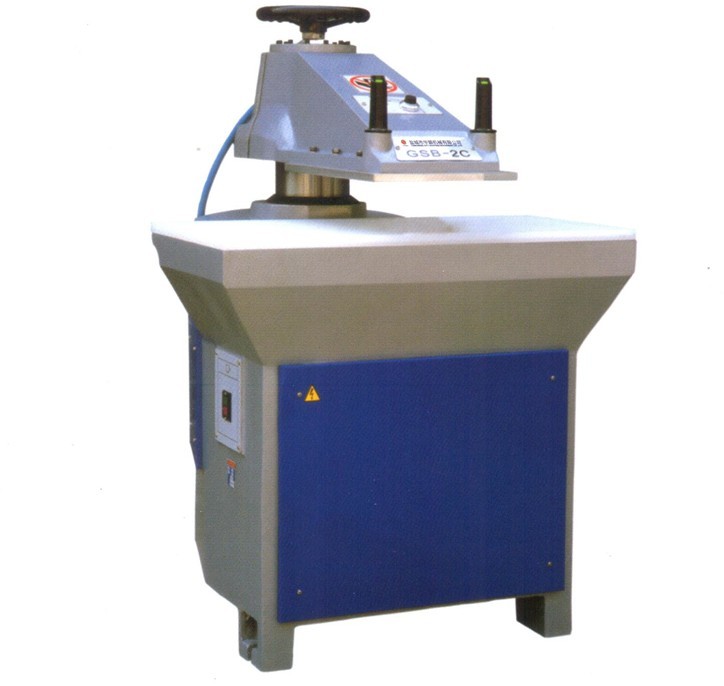

型號
最大沖裁力
擺臂寬度
沖程調節范圍
沖裁速度
上、下工作臺面使用距離
下工作臺面尺寸
電機功率
GSO-2C/20            GSB-2C/25
200KN                    250KN
350 x 550mm          450 x 550mm
5-75mm                  5-75mm
0.10m/s                   0.10m/s
            65-150mm
            1000 x 500mm
              1.5KW
