技術特性：
1.適用于EVA制品的冷壓成型
2.采用柱式結構設計
3.具有整體結構合理，外形美觀，省電，工作壓力易調，操作簡單，機械性能安全可靠，穩定性好等優點
4.冷卻采用雙向式冷卻，循環效果快速均勻
|
技術規格：Technical
specifications
|
|
|
|
型號 Model
|
CG070518
|
|
|
模板尺寸 Platen size
|
600*450
|
|
|
模座數 Number of die bases
|
6
|
|
|
最大油壓出力 Max.oil pressure output
|
120T
|
|
|
油缸缸芯直徑 Cylinder core diameter
|
250MM
|
|
|
最大功率 Maximum power
|
10KW
|
|
|
輸入電壓/頻率 Input
voltage
|
380V/60HZ
|
|
|
主機尺寸 Machine
dimensions
|
5300*1400*1800MM
|
|
|
裝箱尺寸 Packaging
imensions
|
5500*1500*1900MM
|
|
|
凈重/毛重 Net/gross
weight
|
7500/8000KGS
|
|

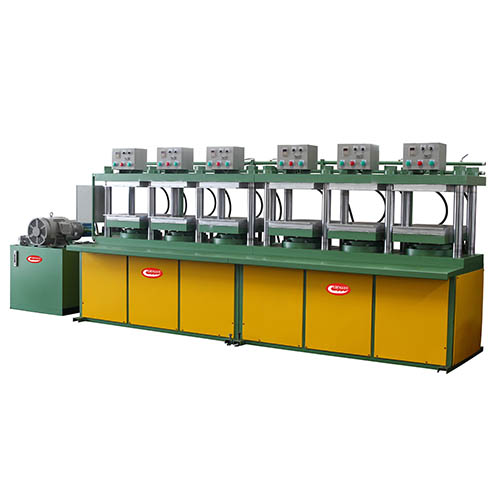

Technical features:
1.Applicable to cold pressed forming of EVA products ,such as EVA movable shoe pad
2.Column structured
3.With the overall structure is reasonable,Beautiful shape ,save electricity,working pressure easily adjustable,the operation is simple,mechanical properties of safe and reliable,good stability, etc
4.Equipped with a bi-directional cooling system,Cooling effect quickly and evenly
