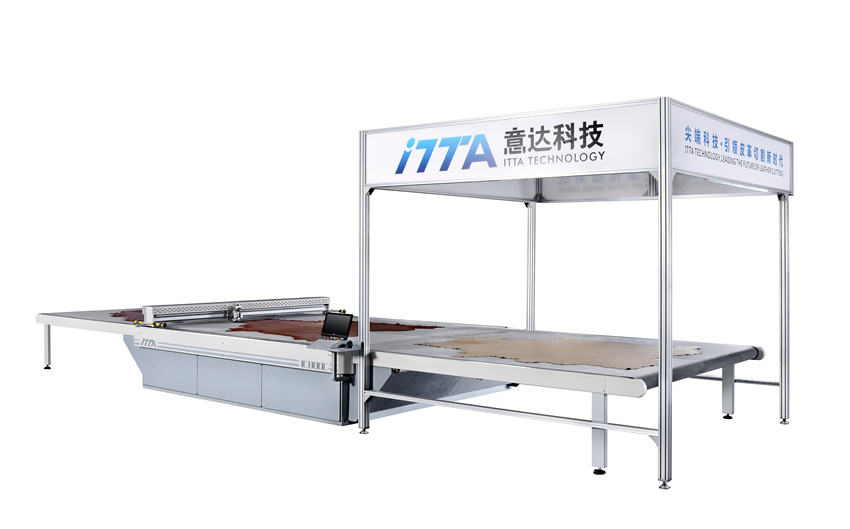

IC800C智能傳送帶式皮革裁剪機
AUTOMATIC LEATHER CUTTING MACHINE WITH CONVEYOR BELT
此款皮革裁剪機適用40尺以上大皮排版區、切割區、收料區由一條傳送帶無縫連接,以保證機器不間斷的生產。IC700C/IC800C有效幫助真皮沙發、辦公座椅、汽車座椅及內飾行業提高產量、節省人工成本、節約原材料。
There are these working areas, equipped with conveyor, the IC800C transfer the big leather automatically from the nesting area and the material reception area. The three working areas could working simultaneously or separately. It is suitable for automotive seat and accessories, soft furniture (sofa, bed, massage chairs and office chairs.)
機器參數TECHNICAL PARAMETER:
|
型號
|
IC800C
|
|
機器尺寸
|
11000×3300×3600mm
|
|
排版區域
|
3200×3000mm
|
|
切割區域
|
3200×3000mm
|
|
收料區域
|
3000×2900mm
|
|
功率
|
3-phase 200-400VAC50-60HZJ5KW monopase 200-240VAC,50-60,2KW
|
|
真空吸力
|
4-6pa
|
|
最大切割速度
|
84米/分鐘(約3307inches/min)
|
|
選配
|
IN400A排版機
|
