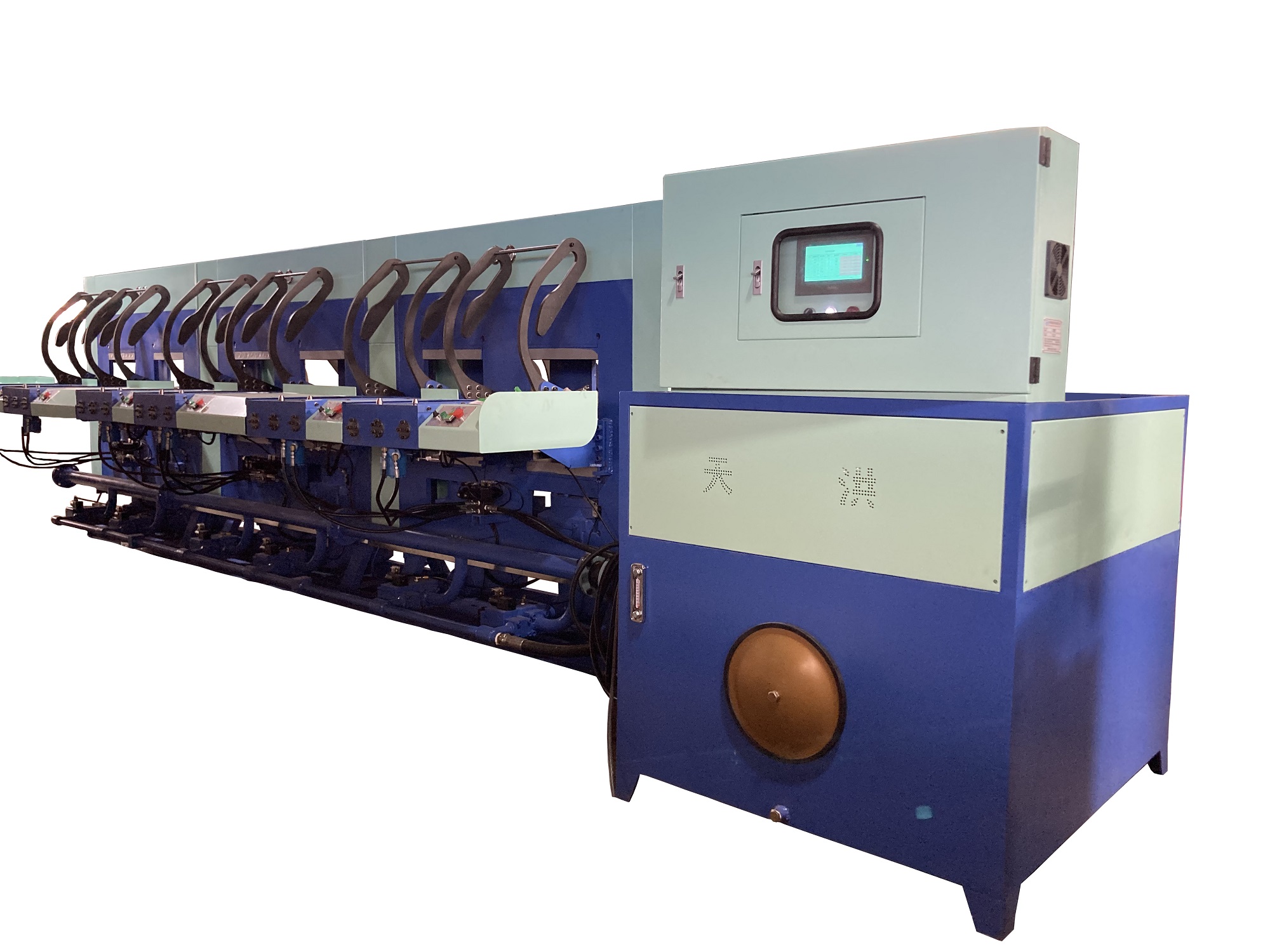

TH-RB-06H自動進出模設計,安全,便捷。節省人工。
Automatic access to the die design, safe and convenient. Save human resources.
2 、機身采用國標32mm鐵板經激光切割,經高溫消除應力后加工而成;
The fuselage adopts the national standard 32mm iron plate to be cut by laser, and then processed by high temperature to
eliminate stress;
3 、油缸采用球墨鑄件,活塞采用實心冷硬鑄鐵,硬度達56°以上,耐磨不刮傷;
The cylinder adopts nodular casting, the piston adopts solid chilled cast iron, the hardness is more than 56°, and the wear is
not scratched;
4、油箱設置冷卻功能,降低油溫,延長循環油壽命;
The fuel tank is equipped with a cooling function to reduce the oil temperature and extend the life of the circulating oil;
5、采用PLC可編程控制,帶密碼鎖止功能。人機界面高清觸摸屏,帶故障偵測,使用直觀便捷;
PLC programmable control, with password lock function. Human-machine interface -inch high-definition touch screen with
fault detection, intuitive and convenient to use
6、油壓系統采用邏輯式回路,回路內無油封配置,無磨損泄漏之憂;
Hydraulic system adopts logic loop operation, no oil seal configuration within the circuit, no wear leak worries;
7、液壓系統采用雙馬達雙泵高流量系統,響應速度快,品質穩定;
Hydraulic system adopts dual-motor dual-pump high-flow system with fast response and stable quality。
|
型號
Product model
|
馬達功率
Motor power
|
額定電壓
Rated voltage
|
加熱方式
heating
|
油缸
Cylinder
|
熱板
Hot plate
|
層數
Floors
|
間距
spacing
|
重量
Hostweight
|
機械尺寸
size
|
TH-RB-06H
|
18.5KW
|
AC 380V
|
蒸汽、熱煤油、電加熱
Steam, hot kerosene,
Electric heating
|
Φ300mm
|
460*470mm
|
2
|
200mm
|
14000kg
|
L7690*W2500*
H1950mm
|
Product model
馬達功率
Motor power
額定電壓
Rated voltage
加熱方式
heating
油缸
Cylinder
熱板
Hot plate
層數
Floors
間距
spacing
重量
Host weight
機械尺寸
size
TH-RB-06H
18.5KW
AC 380V
蒸汽、熱煤油、電加熱
Steam, hot kerosene,
Electric heating
Φ300mm
460*470mm
2
200mm
14000kg
L7690*W2500*
H1950mm
Product model
馬達功率
Motor power
額定電壓
Rated voltage
加熱方式
heating
油缸
Cylinder
熱板
Hot plate
層數
Floors
間距
spacing
重量
Host weight
機械尺寸
size
TH-RB-06H
18.5KW
AC 380V
蒸汽、熱煤油、電加熱
Steam, hot kerosene,
Electric heating
Φ300mm
460*470mm
2
200mm
14000kg
L7690*W2500*
H1950mm
