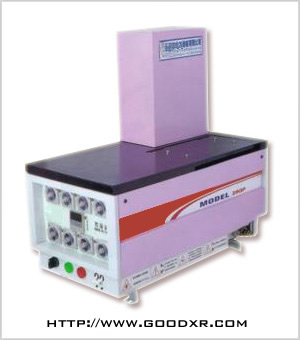

主要技術參數 Main Technical PARAMETERS
●TANK容量: 10kg
●幫浦功率：行星式齒輪50K聯掛變頻可調速出膠
●操作溫度：最高210℃
●整體耗電量：5200W
●電力需求：220VAC/單相
●融膠能力：22kg/hr
●機體重量: 48kg
●機體尺寸：680x350x630mm
●風壓范圍：槍體：4.5kg
●膠管長度：2/4/6/8/10/24Ft
●膠管容量：2組/5組
●TANK鐵氟龍不碳化處理
◆TANK CAPACITY: 10kg
◆PUMP POWER:Planetary Gear Pump 50kg
◆OPERATING TEMPERATURES:MAX 210℃
◆POWER CONSUMPTION:5200W
◆OPERATING POWER:220VNsingle phase

◆MELTING CAPACITY:20kg/hr
◆WEIGHT:48kg
◆DIMENSION (LxWxHmm):680x310x400
◆WIND PRESSURE RANGE:Inside cylinder:4.5kg
◆HOSE LENGTH:2/4/6/8/10/24 Ft,
◆HOSE CAPACITY:2 sets/5 sets
◆TANK non-carbonizing treatment
功能特點 Functions and features
●齒輪幫浦吐膠量均勻無降壓現象，可作微量吐膠綢整，亦可并聯變頻器可做速度追蹤吐膠。
●齒輪幫浦獨立懸吊，保養維修輕便，節省工時。
●幫浦蓄壓大，母機可作多組膠管與槍體操作。
◆The gear-bump even throws up adhesive without the pressure falling, can micro-adjust the adhesive-throwing, and connect the duplex generator in parallel to follow the speed to throw up adhesive.
◆The gear-bump hangs alone, which is convenient to maintain and saves hours.
◆The bump stores great pressure. The machine tool can be operated with multi hous and gunstock.
